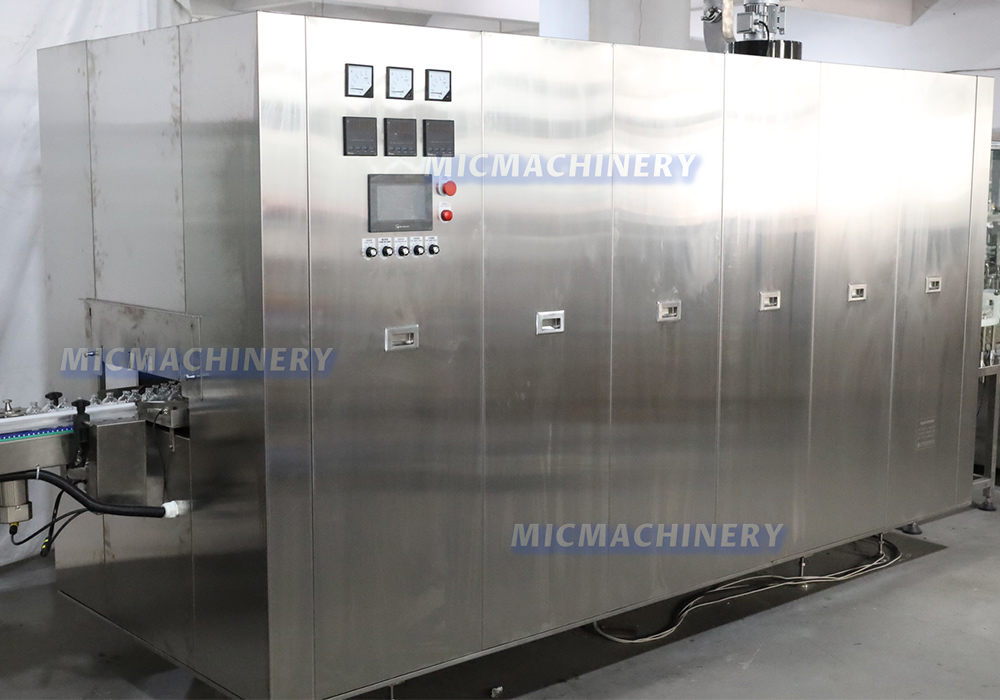

MIC-600S Tunnel Style Hot Air Circulation Autoclave (50–60 Bottles/min)

MIC-600S Tunnel Style Hot Air Circulation Autoclave Overview

The MIC-600S Tunnel Style Hot Air Circulation Autoclave is a high-capacity sterilization and drying system developed by Mic Machinery in accordance with GMP requirements and current pharmaceutical machinery standards. Manufactured primarily from SUS304 stainless steel, the system is designed for continuous sterilization and drying of oral liquid bottles and other glass containers. As a professional autoclave, it combines tunnel-style structure with hot air circulation technology to deliver stable, uniform, and reliable sterilization performance for pharmaceutical and laboratory environments.

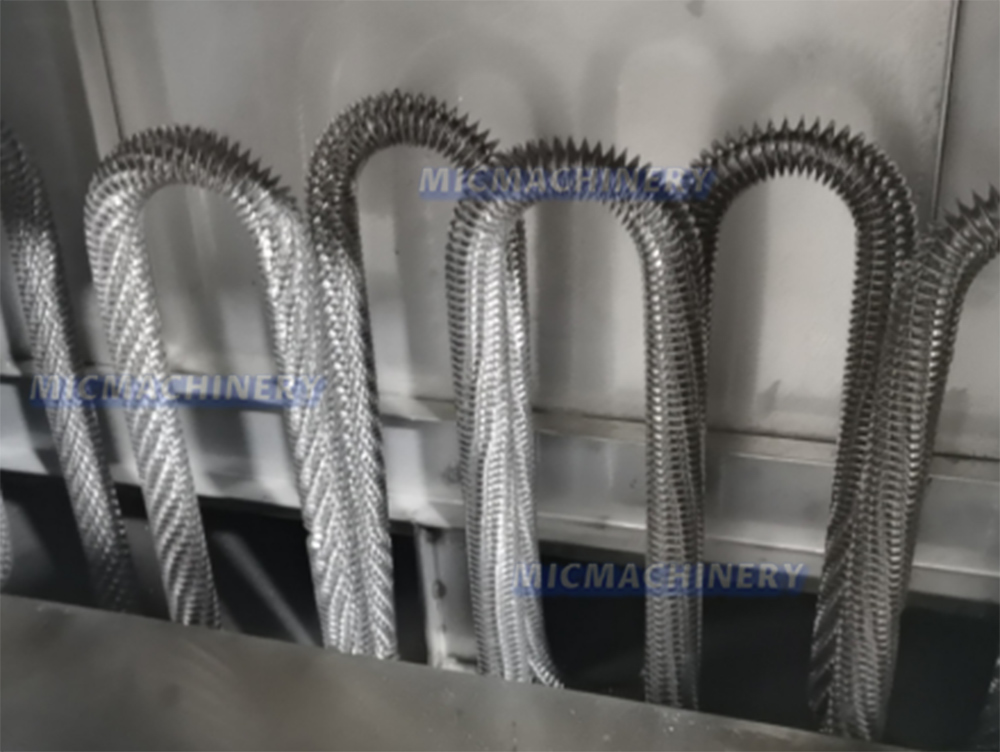

		Stainless Steel Heating Tube Stainless steel heating tubes provide fast, uniform heating with strong corrosion resistance. Designed for continuous industrial operation, they ensure high thermal efficiency, stable high-temperature performance, easy cleaning, and long service life in sterilization, drying, and fluid heating systems.

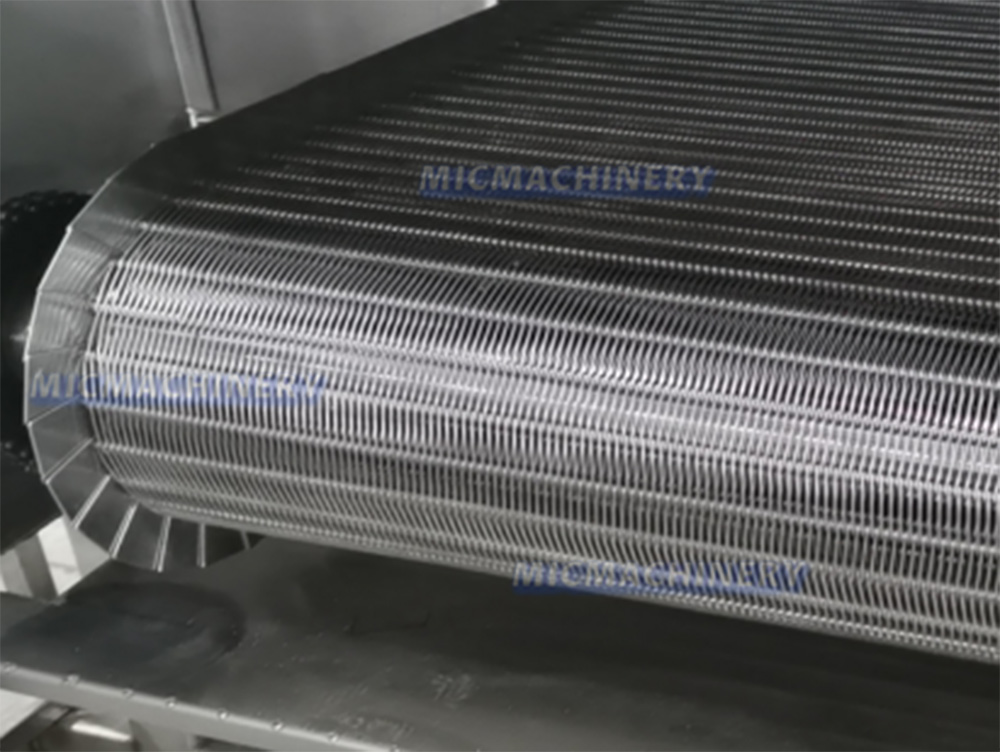

Stainless Steel Mesh Belt Stainless steel mesh belts offer smooth, stable conveying with excellent heat resistance and corrosion protection. Their open structure allows efficient airflow and drainage, making them ideal for high-temperature sterilization, drying, and continuous processing lines requiring reliable, hygienic transport.

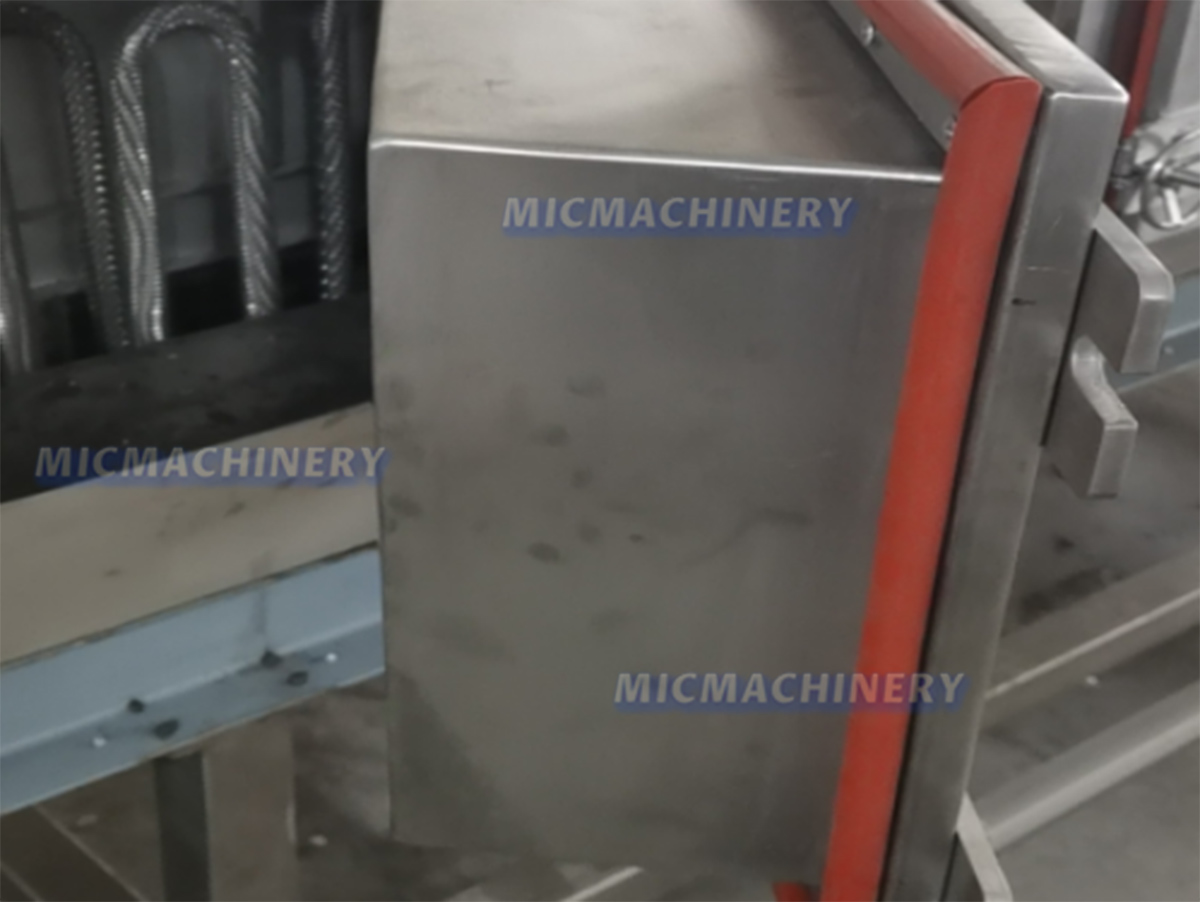

		Over 100mm Thick Insulation Cotton Over 100mm thick insulation cotton provides excellent thermal retention and energy efficiency for high-temperature equipment. It minimizes heat loss, stabilizes internal temperatures, and improves operational safety, while also reducing energy consumption and supporting long-term, reliable industrial performance.

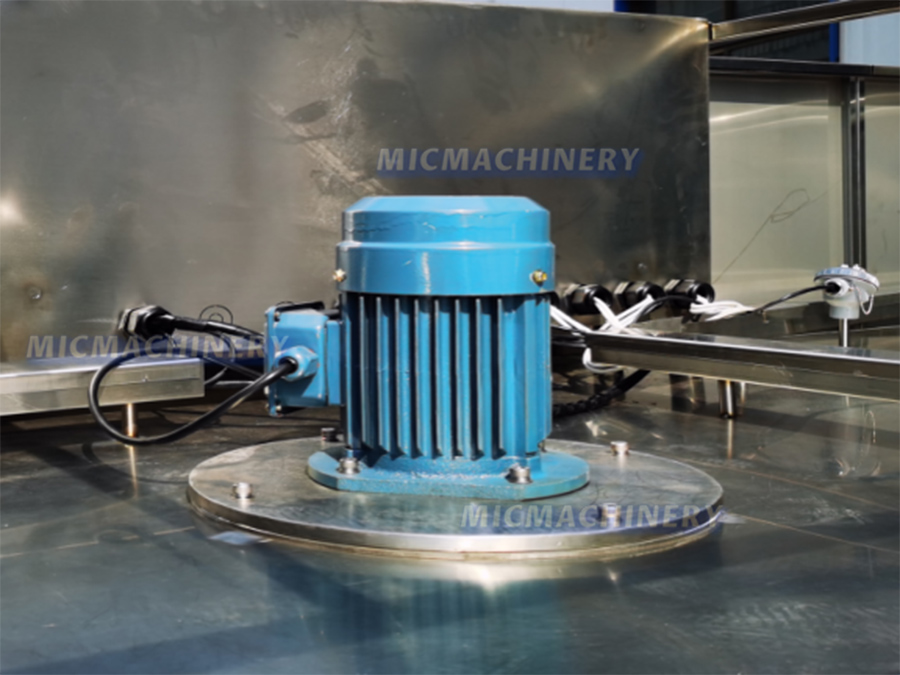

High Temperature Resistant Fan A high temperature resistant fan is designed to operate reliably in extreme heat conditions. It ensures stable airflow, supports uniform heat distribution, and maintains system performance during continuous high-temperature processes, improving efficiency, safety, and long-term equipment stability.

Continuous Hot Air Sterilization Performance

Designed as a large autoclave, the MIC-600S adopts a continuous tunnel process divided into three functional zones: preheating, high-temperature sterilization, and cooling. Stainless steel heating elements and hot air circulation ensure rapid temperature rise and uniform heat distribution throughout the tunnel. During sterilization, temperatures can reach up to 200°C and are maintained for a controlled duration to ensure effective microbial elimination. After cooling, bottle outlet temperatures are stabilized within a controlled range, supporting safe downstream handling and packaging.

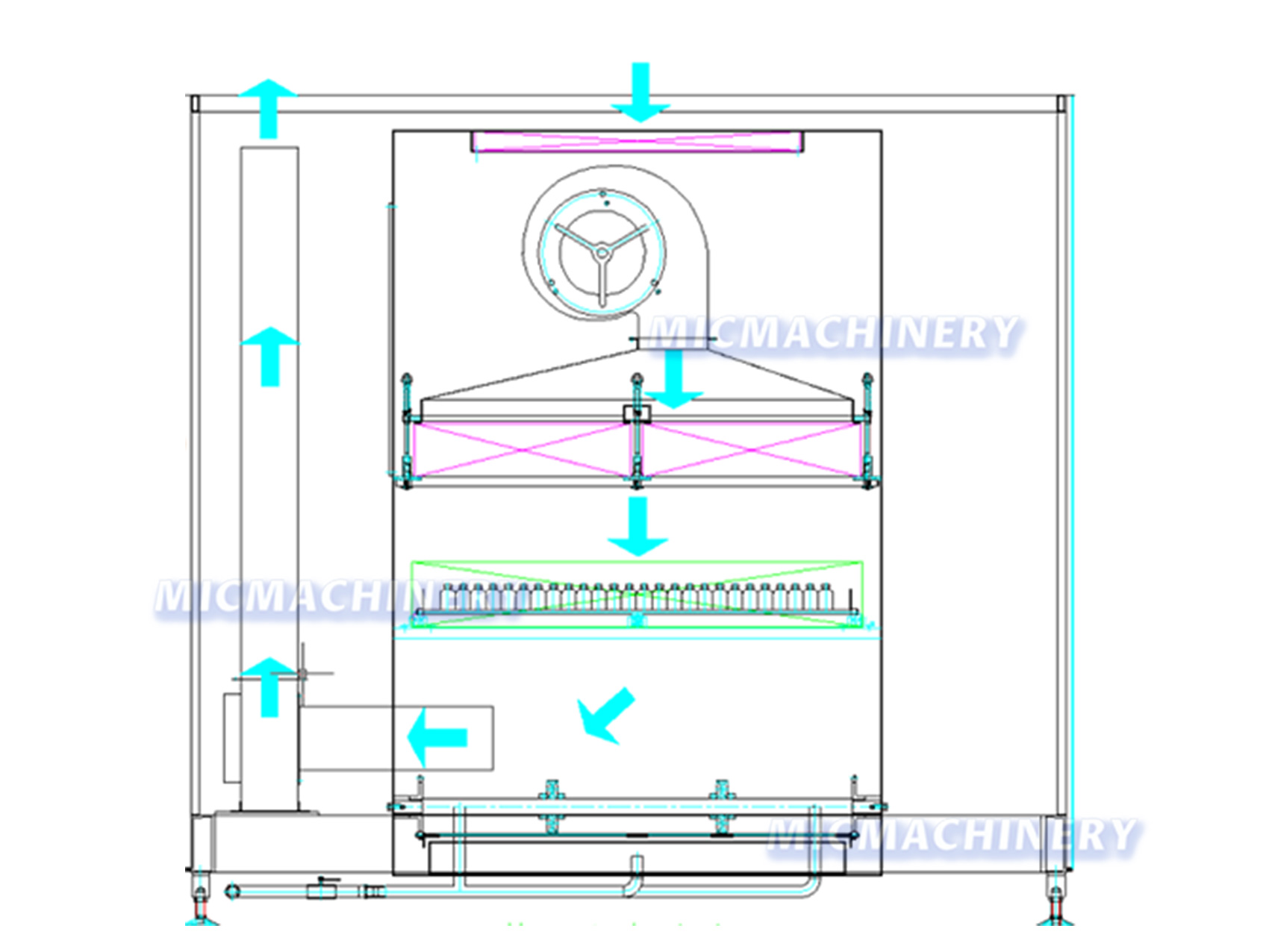

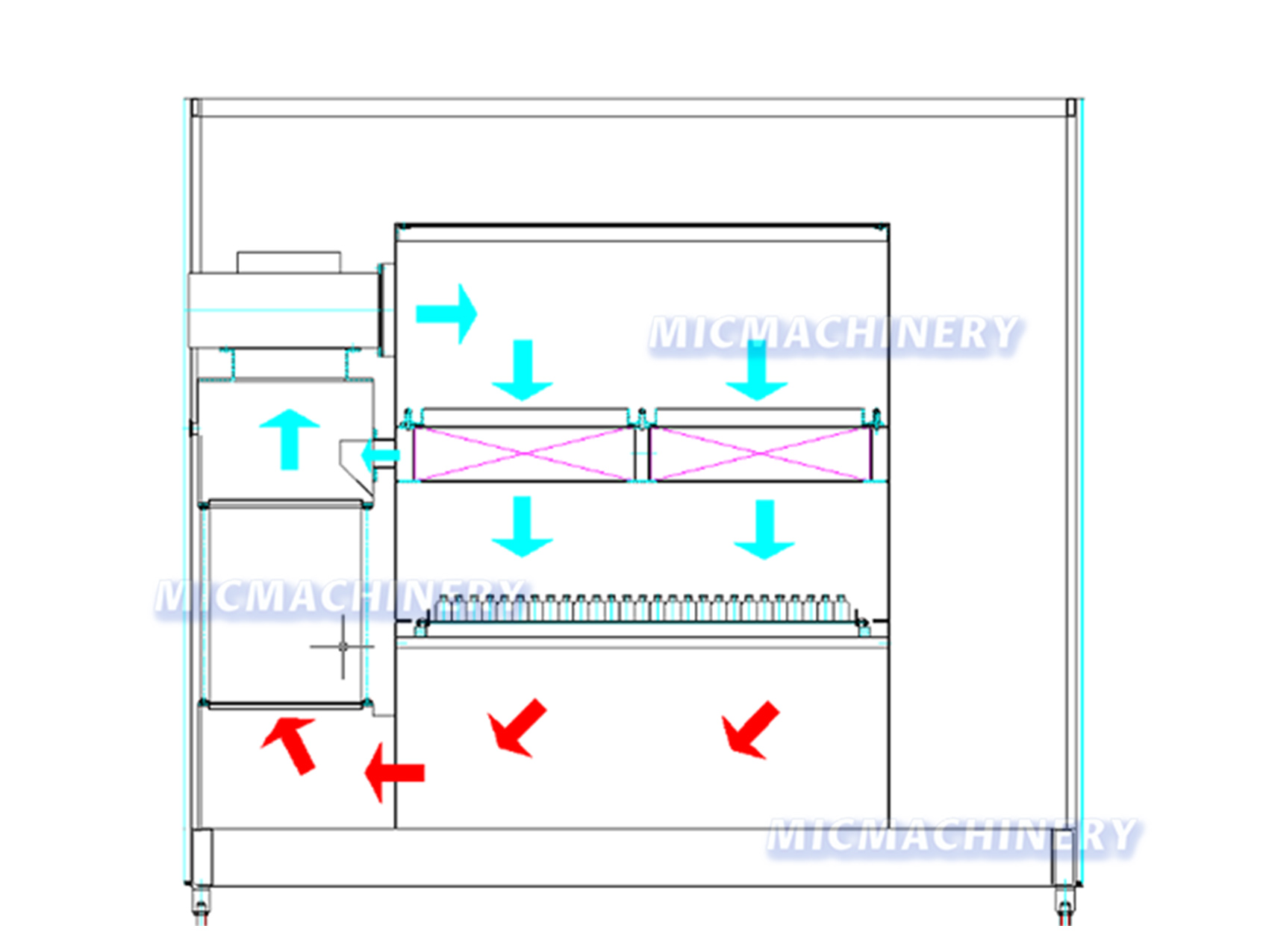

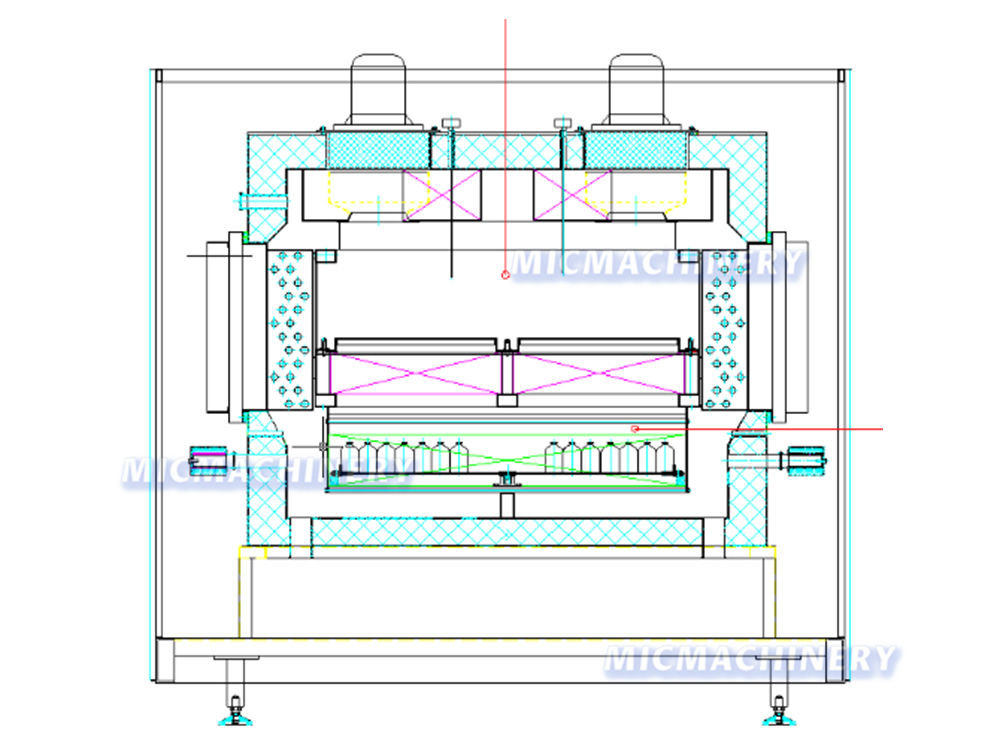

Preheat		High-Temperature Sterilization		Cooling

Functional Design and System Advantages

The MIC-600S Tunnel Style Hot Air Circulation Autoclave integrates advanced control and structural design to meet demanding production requirements:

· Multi-zone tunnel structure with precise temperature control and digital display

· Hot air circulation system using stainless steel heating tubes for uniform sterilization

· PLC and human–machine interface for automatic parameter setting and monitoring

· Fault indication and automatic protection functions for operational safety

· Stainless steel mesh conveyor with stepless speed adjustment for smooth transport

As a dependable autoclave sterilizer, these features ensure consistent performance, easy operation, and compliance with pharmaceutical production standards.

Hygienic Construction and Energy-Efficient Design

The oven base frame uses a modular channel-steel structure for convenient installation and maintenance. All tunnel sections, air ducts, and product-contact components are welded from stainless steel, ensuring a compact and hygienic structure. The heating zone is insulated with thick silicone aluminum wool to improve heat retention and reduce energy consumption. The cooling section is equipped with Class 100 laminar airflow, low-noise fans, and medium-efficiency filters, ensuring that sterilized bottles are protected from secondary contamination during cooling. High-temperature zones utilize durable fans and filtration systems designed for long-term stability.

Professional Manufacturing by Mic Machinery

Manufactured by Mic Machinery, the MIC-600S reflects extensive experience in large-scale sterilization system design and production. As a professional large autoclave, it combines continuous operation capability, hygienic construction, and intelligent control into a reliable industrial solution. This autoclave is engineered to support high-throughput pharmaceutical production while ensuring product safety, energy efficiency, and long service life. With its stable performance and GMP-oriented design, the MIC-600S provides a trusted autoclave sterilizer solution for modern pharmaceutical, medical, and laboratory applications.
