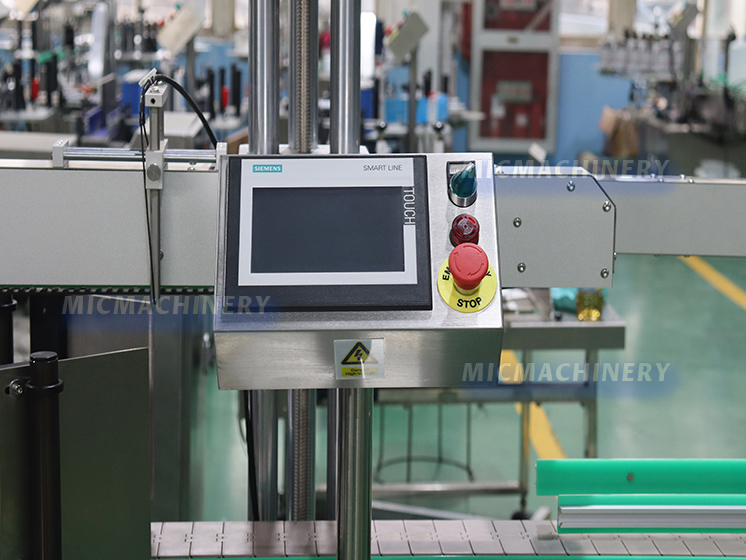

The PLC Human-Machine Touch Control Screen in a labeling machine offers intuitive operation and precise control. It allows operators to easily adjust labeling parameters, monitor real-time performance, and quickly troubleshoot errors, ensuring efficient production and consistent labeling accuracy.
MIC-DS Tube Labeling Machine（40-200 Bottles/min）
The MIC-DS Tube Labeling Machine delivers precise, high-speed labeling for tubes of various sizes. Ideal for pharmaceutical, cosmetic, and laboratory applications, it ensures consistent accuracy, smooth operation, and easy integration into production line
Precision Labeling for Medical and Cosmetic Tubes
The MIC-DS Tube Labeling Machine is a high-performance solution designed by Mic Machinery to deliver precise and efficient labeling for various tube products. Whether you are labeling cosmetic, pharmaceutical, or laboratory tubes, this system ensures perfect alignment and smooth application. Built with advanced label applicator equipment, the machine offers stable operation and a user-friendly interface that supports both small and large-scale production lines. It guarantees consistent quality labeling, minimizing errors and product waste during production.
 |

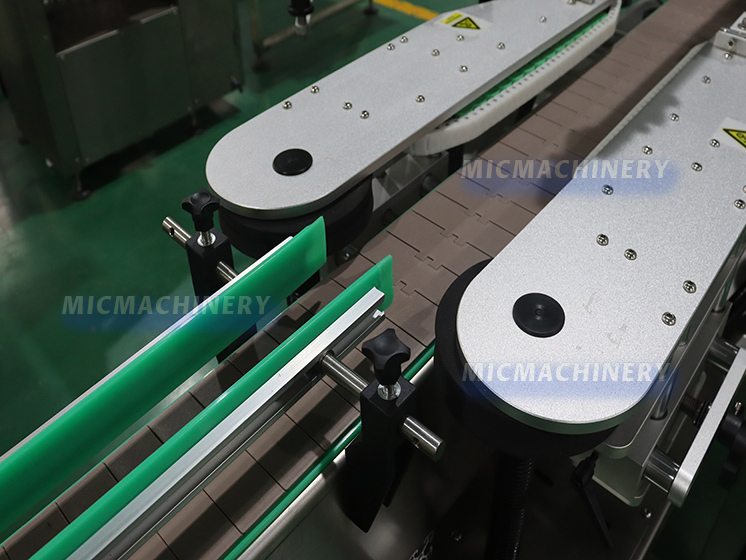

Bottle Straightening Mechanism The Bottle Straightening Mechanism in a labeling machine ensures precise bottle alignment before label application. It stabilizes bottles of various shapes and sizes, prevents tilting or rotation errors, and guarantees accurate label placement, enhancing labeling speed, efficiency, and overall production quality. |
|
|
PLC Human-machine Touch Control Screen |
 |
|
 |

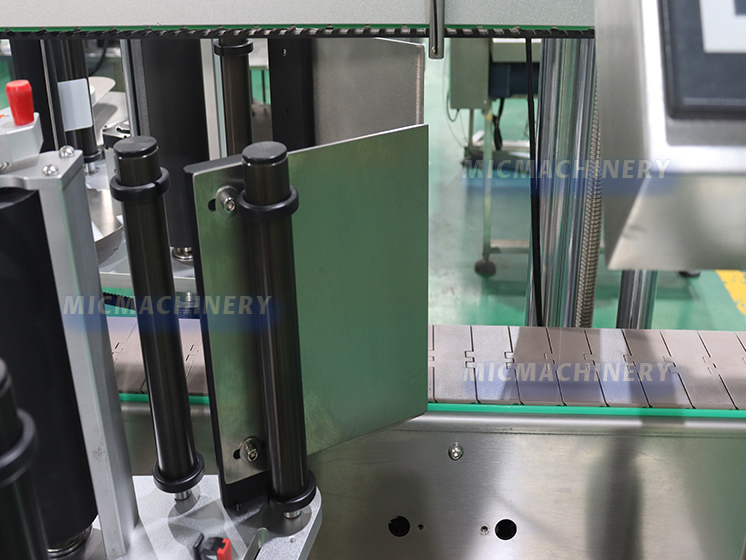

Stripping Mechanism The Stripping Mechanism in a labeling machine precisely separates labels from the backing paper and transfers them onto the product surface. It ensures smooth, wrinkle-free application, enhances label placement accuracy, and maintains consistent labeling performance at high production speeds. |
Advanced Structure and Working Principle
This tube labeling machine adopts a robust mechanical structure combined with intelligent control technology. It is equipped with a servo-driven system to ensure accurate positioning, even when labeling flexible or irregularly shaped tubes. The machine can handle both round and slightly oval tubes, automatically adjusting its feeding and wrapping speed to maintain precise label placement. Its modular design allows for easy maintenance and quick changeovers, supporting different label sizes and materials. By integrating reliable label applicator equipment, the MIC-DS ensures every tube is labeled evenly and securely.
Performance, Efficiency, and Flexibility
One of the key advantages of this tube labeler is its versatility. It can be used for labeling a wide range of products, from medical ointment tubes to cosmetic cream tubes. The system operates at high speed while maintaining gentle product handling to avoid deformation or surface damage. The automatic detection system identifies missing labels, misalignment, or overlapping, ensuring that every product meets your quality standards. With energy-efficient motors and a compact design, this tube labeling machine fits easily into any existing production environment, optimizing both space and performance.
Intelligent Control and User-Friendly Interface
The MIC-DS features a touch-screen control panel with intuitive settings that allow operators to adjust label length, position, and speed with ease. The PLC control system provides real-time monitoring, error alarms, and production data tracking. This user-oriented design enhances reliability and simplifies daily operation, making the tube labeler suitable for continuous, 24-hour production. Its advanced label applicator equipment ensures smooth operation and precise label application even under high-speed conditions.
A Reliable Solution from Mic Machinery
As a professional manufacturer in the labeling industry, Mic Machinery delivers dependable solutions tailored for medical and cosmetic packaging needs. The MIC-DS Tube Labeling Machine embodies precision, speed, and durability—qualities that define our engineering excellence. By combining advanced tube labeling machine technology with easy operation and minimal maintenance, it provides an ideal labeling solution for modern production lines. Whether used independently or integrated into a complete packaging system, this tube labeler helps you achieve consistent results and higher productivity.
|
Voltage specifications |
AC220V 50/60HZ |
|
Power consumption |
980W |
|
Labeling speed |
40-200 bottles/minute (speed adjustable, depending on object size and label length) |
|
Labeling accuracy |
+1mm (depending on product characteristics, softness, hardness, and roundness) |
|
Bottle diameter |
25-120mm |
|
Object Range |
Height 20mm~~300mm (can be customized according to customer requirements) |
|
Label specifications |
Height 10mm~~150mm, length 15~~300mm (special specifications can be customized) |
|
Inner diameter of paper roll |
Φ 76mm paper roll outer diameter: Φ 300 (maximum) |
|
Weight |
200KG |
|
Packaging size |
1950X1100X1300mm |
|
Belt width |
Customized according to the diameter of the sample bottle provided by the customer |
|
NO. |
Name |
Quantity |
Unit |
Brand |
|
1 |
Human Computer Interface (HIM) |
1 |
platform |
Kunlun Tongtai |
|
2 |
Programmable Logic Controller (PLC) |
1 |
platform |
Kunlun Tongtai |
|
3 |
Labeling motor |
1 |
platform |
Yankong |
|
4 |
Labeling motor driver |
1 |
platform |
Yankong |
|
5 |
Conveyor motor |
1 |
platform |
Shanghai Jianming |
|
6 |
Conveyor motor frequency converter |
1 |
platform |
Delta |
|
7 |
Bottle splitting motor |
1 |
platform |
JSCC |
|
8 |
Bottle separation motor controller |
1 |
platform |
JSCC |
|
9 |
Label motor |
1 |
platform |
JSCC |
|
10 |
Label motor controller |
1 |
platform |
JSCC |
|
11 |
Low voltage electrical apparatus |
1 |
set |
Schneider |
|
12 |
Label sensor |
1 |
set |
Laoyice Transparent Label Optoelectronics |
|
13 |
Labeling sensor |
1 |
set |
Omron |
|
14 |
Synchronous toothed belt |
1 |
set |
Bandong |
|
15 |
Pneumatic components |
1 |
set |
Airdac |
|
16 |
Conveyor belt |
1 |
set |
Shanghai Lilai |
|
17 |
frame |
1 |
set |
304 Stainless Steel |
|
18 |
system integration |
1 |
set |
Ruixiao |
