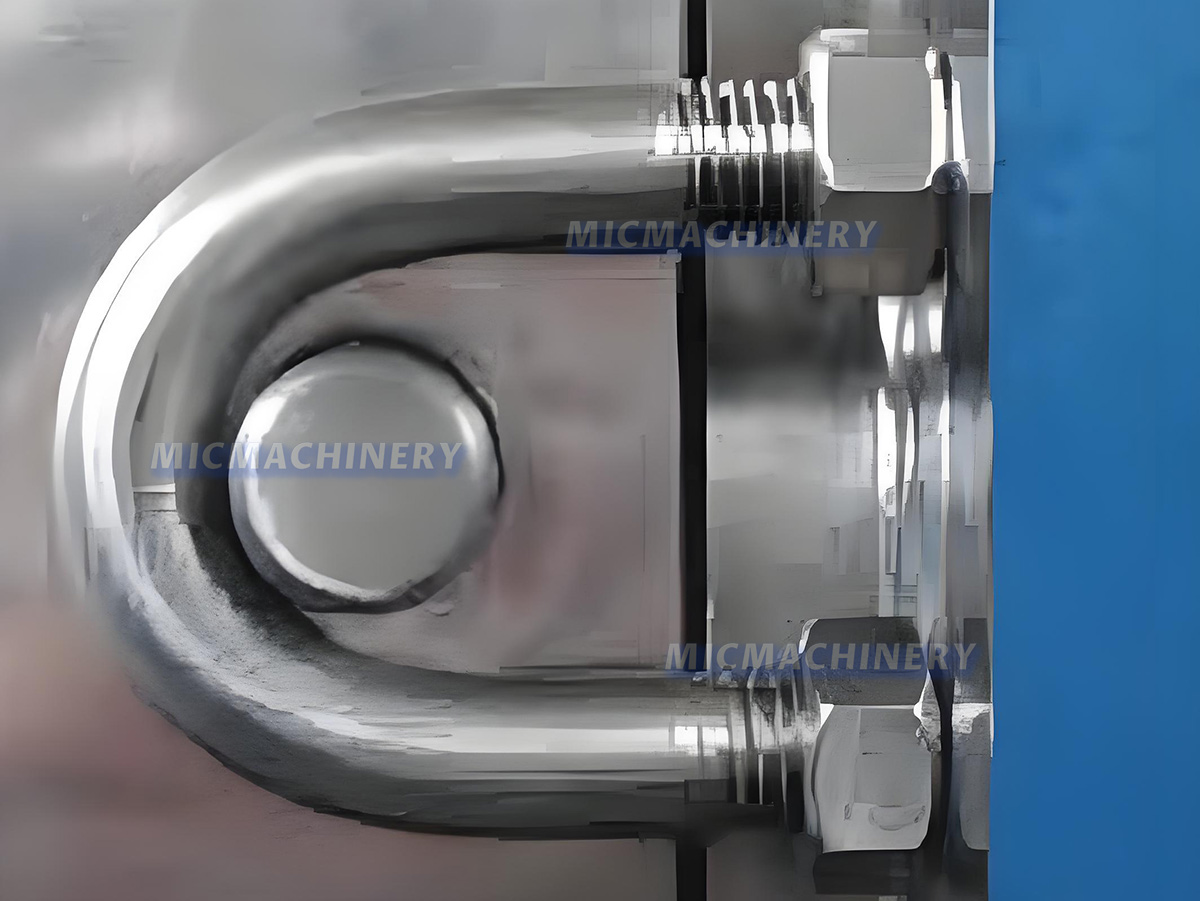

The National Patented Door Locking Device in a vacuum autoclave provides secure, airtight sealing for safe operation. It prevents accidental opening during high-pressure cycles, ensures uniform steam penetration, and maintains GMP-compliant sterilization standards, enhancing both safety and reliability for medical and laboratory applications.
MIC-YG Pulsating Vacuum Autoclave
The MIC Pulsating Vacuum Autoclave delivers reliable, high-efficiency sterilization using pure steam and pulsed vacuum cycles. It ensures uniform heat penetration, GMP-compliant performance, and safe, contamination-free operation for pharmaceutical and laboratory applications.
Advanced Pulsating Vacuum Sterilization
The MIC Pulsating Vacuum Autoclave is designed for efficient sterilization of items such as medical garments, dressings, metal instruments, culture media, and glassware. Using precise pulsed vacuum cycles combined with high-quality steam, this vacuum autoclave ensures uniform heat penetration and complete microbial inactivation. Its automated PLC and human-machine interface control system allows for accurate cycle management, temperature recording, and vacuum drying, making it ideal for hospitals, laboratories, and pharmaceutical facilities.
 |
Advanced Data Printing Function The Advanced Data Printing Function in a vacuum autoclave allows precise recording of sterilization parameters, including temperature, pressure, and cycle time. It provides clear, reliable printouts for GMP compliance, traceability, and quality control, ensuring every sterilization batch is fully documented and easily auditable. |
|
|

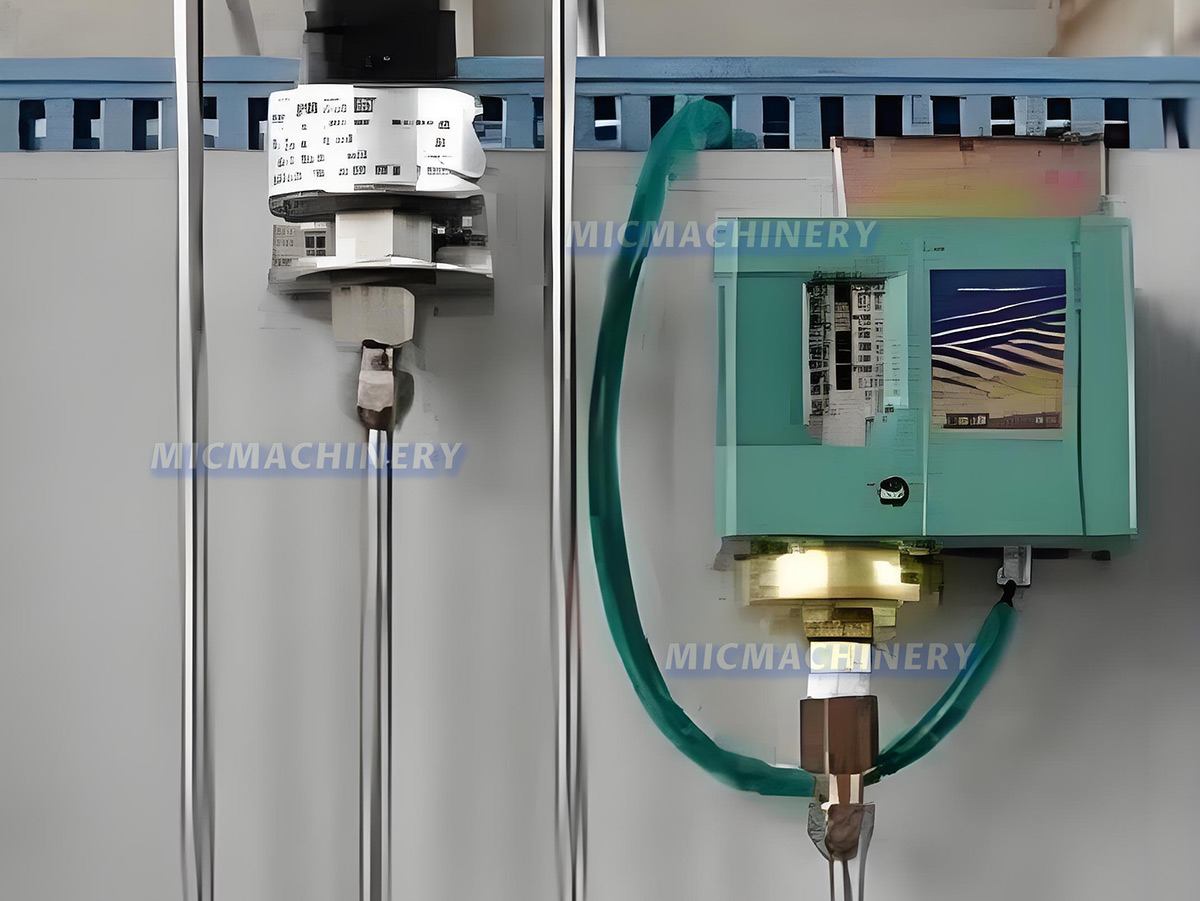

High Precision Pressure Control Components The High Precision Pressure Control Components in a vacuum autoclave ensure accurate regulation of chamber pressure throughout each sterilization cycle. By maintaining stable and consistent pressure, they enhance steam penetration, guarantee reliable microbial inactivation, and support GMP-compliant, safe, and efficient sterilization processes. |
 |
|
 |
National Patented Door Locking Device |
|

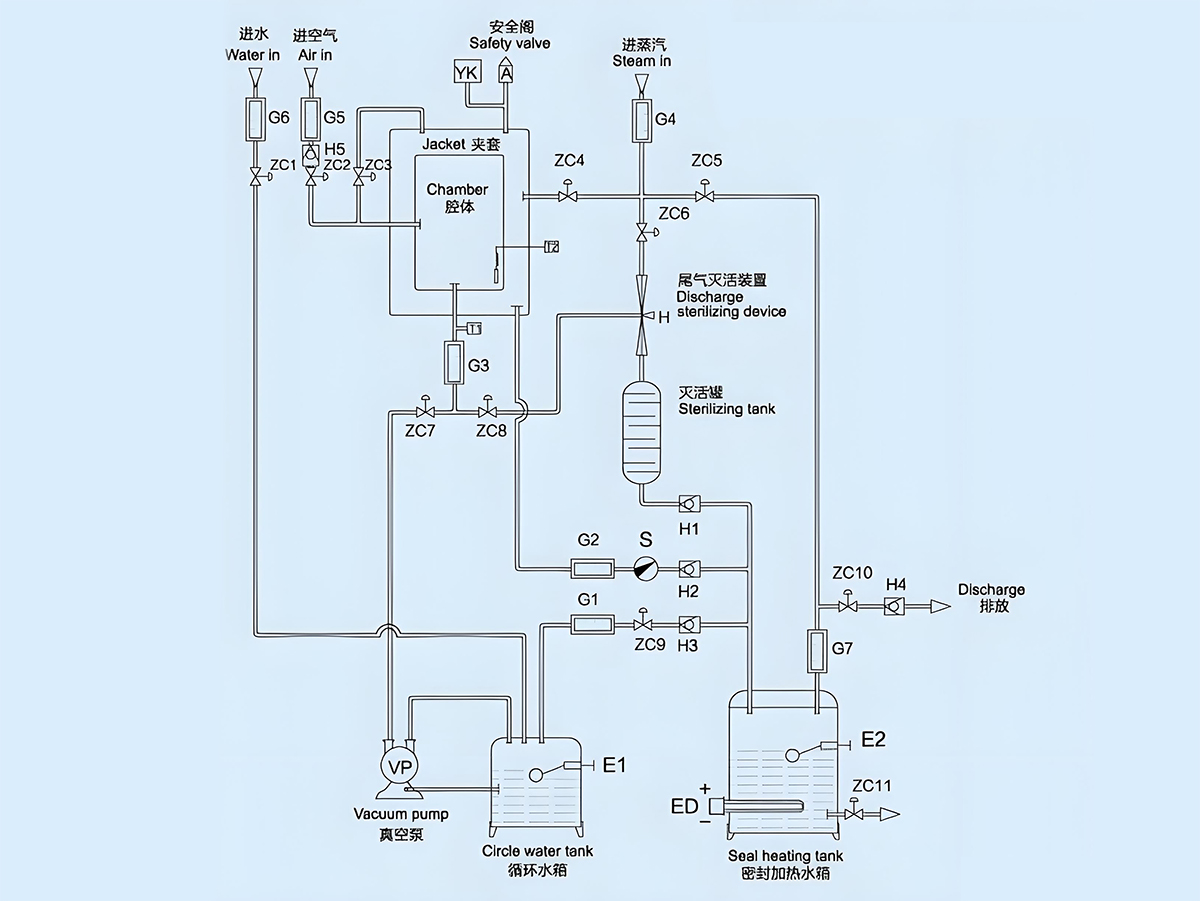

Working Principle The MIC Pulsating Vacuum Autoclave operates through a combination of vacuum and steam pulsation: · Pulsed vacuum cycles remove air and moisture from the chamber for thorough steam penetration. · High-pressure saturated steam enters the chamber to achieve uniform temperature distribution. · Vacuum-assisted drying removes residual moisture from sterilized items. · Automated control system monitors pressure, temperature, and time for precise, repeatable sterilization. This method ensures complete microbial inactivation while protecting sensitive materials. |
|

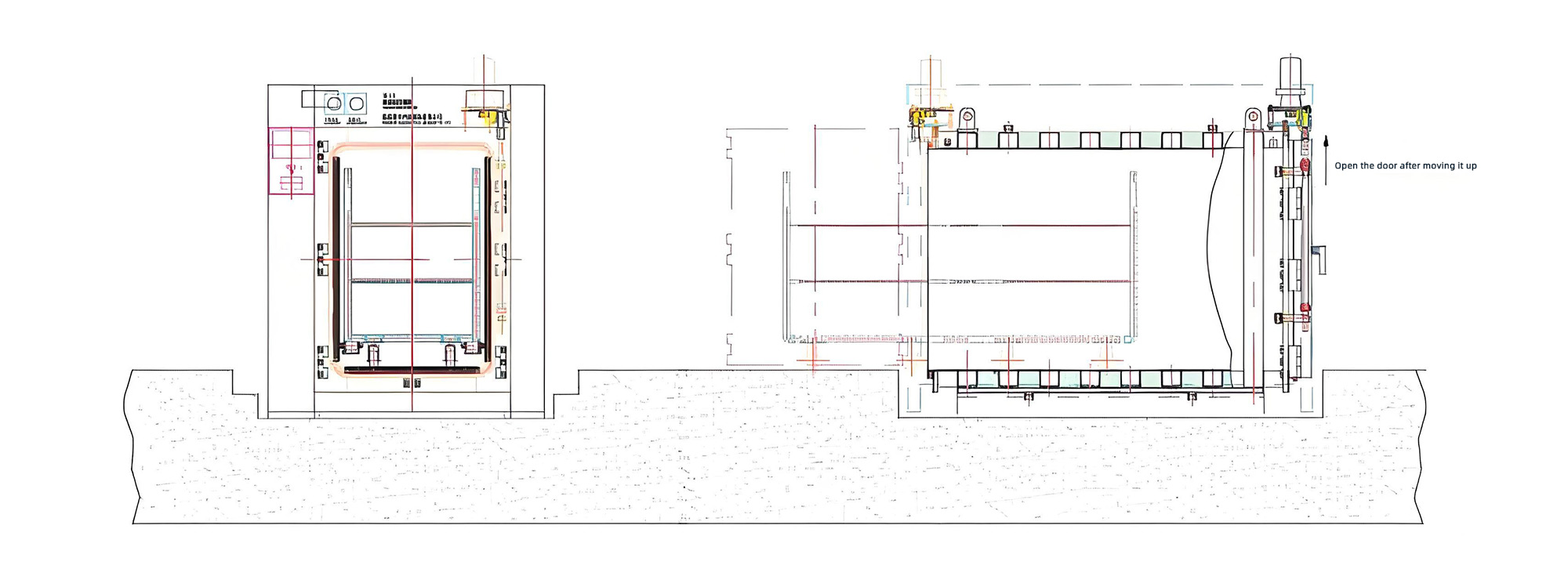

Schematic diagram of opening the door after moving it up
Safe and GMP-Compliant Design
Built to meet strict national standards for steel pressure vessels (GB150), this medical sterilizer machine features patented door locking and inflatable sealing technology for superior airtightness. The chamber is equipped with a comprehensive temperature monitoring system with up to 16 validation probes, ensuring precise control and GMP-compliant sterilization. Independent temperature and vacuum monitoring, along with a vacuum pump equipped with a steam condensing system, enhances safety and reliability.
Versatile Applications Across Industries
The MIC Pulsating Vacuum Autoclave is suitable for a wide range of uses:
· Hospital supply rooms and operating rooms – sterilizing surgical instruments, garments, and dressings.
· Pharmaceutical production – handling heat-resistant equipment and culture media.
· Laboratories and research centers – ensuring contamination-free sterilization of glassware and experimental materials.
· Medical device suppliers – providing a reliable sterilization solution for sensitive equipment.
Intelligent Controls and Operational Efficiency
Equipped with advanced PLC and touch-screen controls, the MIC Pulsating Vacuum Autoclave enables customizable sterilization cycles, real-time monitoring, data recording, and printing. Its durable vacuum pump, robust chamber, and automated safety features make this vacuum autoclave highly reliable and cost-effective, minimizing downtime and maximizing operational efficiency.
Trusted Solutions from Mic Machinery
As a leading autoclave supplier, Mic Machinery provides innovative, GMP-compliant sterilization solutions. The MIC Pulsating Vacuum Autoclave combines safety, automation, and reliability, offering a dependable tool for hospitals, laboratories, and pharmaceutical production environments.
Main Parameters and Utilities
|
Design Pressure |
0.245Mpa |
|
Working Pressure |
0.22Mpa |
|
Design Temperature |
139℃ |
|
Working Temperature |
134℃ |
|
Heat equilibrium |
≤±1℃ |
|
Vacuum |
-0.095Mpa |
|
Steam Pressure |
0.4-0.6Mpa |
|
Tap Water Pressure |
0.2-0.3Mpa |
|
Compressed Air Pressure |
0.6-0.8Mpa |
Size & Utilities
|
Model |
Overall Size LxWxH(mm) |
Chamber Size LxWx H(mm) |
Steam Consumption (kg/cycle) |
Power (Kw) |
Tap Water Consumption (kg/cycle) |
Net Weight (kg) |
|
YG-0.1 |
825x1080x1600 |
630x400x480 |
15 |
1.0 |
80 |
380 |
|
YG-0.25 |
895x1220x1720 |
700x600x600 |
20 |
1.5 |
150 |
650 |
|
YG-0.36 |
1195x1220x1720 |
1000x600x600 |
25 |
1.5 |
150 |
760 |
|
YG-0.6 |
1245x1300 x1880 |
1050x680x850 |
30 |
2.0 |
200 |
1100 |
|
YG-0.8 |
1595x1300x1880 |
1400x680x850 |
35 |
3.0 |
250 |
1300 |
|
YG-1.2 |
1695x1370x1960 |
1500x750x1100 |
40 |
3.0 |
300 |
1900 |
|
YG-2.5 |
3195x1370x1960 |
3000x750x1100 |
75 |
4.5 |
450 |
2800 |
|
YG-5.0 |
3635x1800x2200 |
3400x1000x1500 |
150 |
7.5 |
600 |
4500 |
