MIC-W Vial Labeling Machine（40-200 Bottles/min）
Optimized Labeling Accuracy for Vials
The MIC-W is designed to provide precise and consistent labeling for pharmaceutical vials of various sizes. This vial labeling machine ensures each label is applied perfectly without wrinkles or misalignment, improving product presentation and minimizing material waste during high-speed operations.
 |

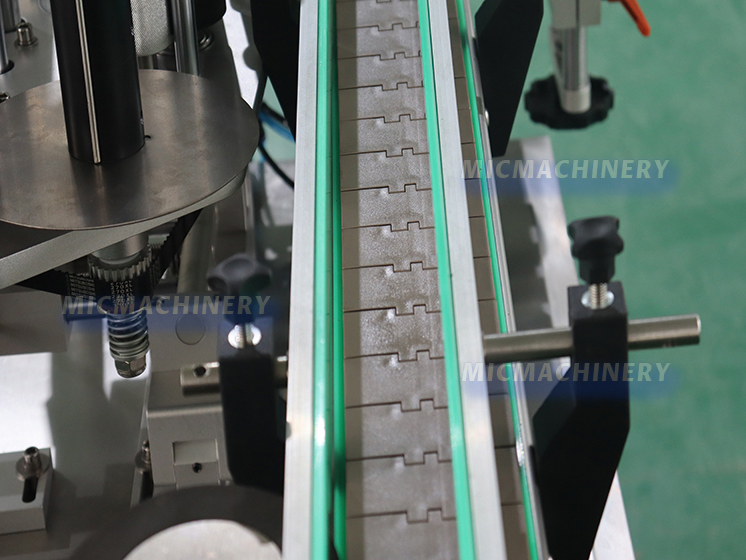

Conveyor Chain Plate The Conveyor Chain Plate in a labeling machine ensures smooth and stable transportation of bottles through the labeling process. It maintains precise spacing and alignment, synchronizes with labeling operations, reduces production errors, and supports high-speed, consistent, and efficient label application. |
|
|

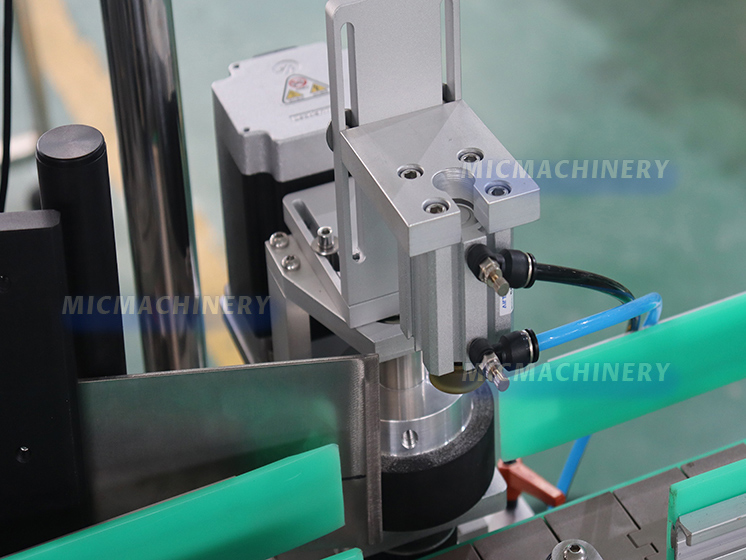

Escort Mechanism The Escort Mechanism in a labeling machine guides bottles accurately through the labeling station, preventing tilting or misalignment. It stabilizes products during high-speed operations, ensures precise label placement, and enhances overall production efficiency and consistency. |
 |
|
 |

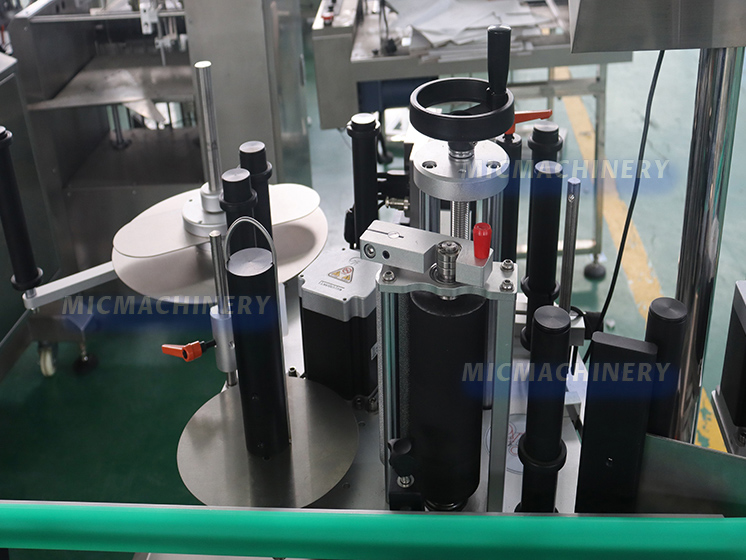

Stripping Mechanism The Stripping Mechanism in a labeling machine carefully removes labels from their backing paper and applies them to the product surface. It ensures smooth, wrinkle-free labeling, maintains precise alignment, and supports high-speed, consistent, and efficient operation across various bottle and vial types. |
Intelligent Servo-Control System
This pharmaceutical labeling machine utilizes a servo-driven mechanism for accurate label placement. Equipped with sensors and PLC control, it automatically detects improperly positioned bottles and prevents labeling errors. The system allows easy adjustment of label position and speed, making it suitable for various vial types.
Flexible and Efficient Production
As an auto labeling machine, the MIC-W can handle multiple vial shapes, including round and cylindrical designs, without reducing labeling speed. Its adjustable components and compact layout make it easy to integrate into existing production lines, supporting both small and large-scale pharmaceutical manufacturing.
User-Friendly Interface and Safety
The machine includes an intuitive touch-screen interface for simple operation and monitoring. Safety features such as emergency stops, protective shields, and error alerts ensure operator safety. This vial labeling machine minimizes downtime while maintaining consistent labeling quality across every production batch.
Reliable Performance from Mic Machinery
With years of experience in labeling solutions, Mic Machinery ensures durable, high-precision equipment. The MIC-W pharmaceutical labeling machine delivers fast, accurate, and reliable labeling. Whether used independently or as part of a production line, this auto labeling machine supports efficient, high-quality vial labeling operations.
|
Voltage specifications |
AC220V 50/60HZ |
|
Power consumption |
980W |
|
Labeling speed |
40-200 bottles/minute (speed adjustable, depending on object size and label length) |
|
Labeling accuracy |
+1mm (depending on product characteristics, softness, hardness, and roundness) |
|
Bottle diameter |
25-120mm |
|
Object Range |
Height 20mm~~300mm (can be customized according to customer requirements) |
|
Label specifications |
Height 10mm~~150mm, length 15~~300mm (special specifications can be customized) |
|
Inner diameter of paper roll |
Φ 76mm paper roll outer diameter: Φ 300 (maximum) |
|
Weight |
200KG |
|
Packaging size |
1950X1100X1300mm |
|
Belt width |
Customized according to the diameter of the sample bottle provided by the customer |
|
NO. |
Name |
Quantity |
Unit |
Brand |
|
1 |
Human Computer Interface (HIM) |
1 |
platform |
Kunlun Tongtai |
|
2 |
Programmable Logic Controller (PLC) |
1 |
platform |
Kunlun Tongtai |
|
3 |
Labeling motor |
1 |
platform |
Yankong |
|
4 |
Labeling motor driver |
1 |
platform |
Yankong |
|
5 |
Conveyor motor |
1 |
platform |
Shanghai Jianming |
|
6 |
Conveyor motor frequency converter |
1 |
platform |
Delta |
|
7 |
Bottle splitting motor |
1 |
platform |
JSCC |
|
8 |
Bottle separation motor controller |
1 |
platform |
JSCC |
|
9 |
Label motor |
1 |
platform |
JSCC |
|
10 |
Label motor controller |
1 |
platform |
JSCC |
|
11 |
Low voltage electrical apparatus |
1 |
set |
Schneider |
|
12 |
Label sensor |
1 |
set |
Laoyice Transparent Label Optoelectronics |
|
13 |
Labeling sensor |
1 |
set |
Omron |
|
14 |
Synchronous toothed belt |
1 |
set |
Bandong |
|
15 |
Pneumatic components |
1 |
set |
Airdac |
|
16 |
Conveyor belt |
1 |
set |
Shanghai Lilai |
|
17 |
frame |
1 |
set |
304 Stainless Steel |
|
18 |
system integration |
1 |
set |
Ruixiao |
