Oral Liquid Filling Machine Line(300-350 bottles/min）

16-Heads Fully Integrated Oral Liquid Filling Production Line: Complete Turnkey Solution for Pharmaceutical & Nutraceutical Packaging

Optimize your entire production workflow with our 16-Heads Integrated Oral Liquid Filling Production Line, a sophisticated turnkey system that unifies a rotary disc bottle washer, drying oven, and 16-heads oral liquid filling & capping machine into one seamless, automated operation. This comprehensive oral liquid filling machine line is engineered for manufacturers of pharmaceutical syrups, pediatric suspensions, herbal extracts, and nutraceutical tonics who demand an efficient, closed-loop process from cleaning to final capping. Designed for exceptional value without compromising GMP standards, it offers a complete, reliable, and scalable cheap oral liquid filling machine line solution perfect for growing businesses and contract packagers.

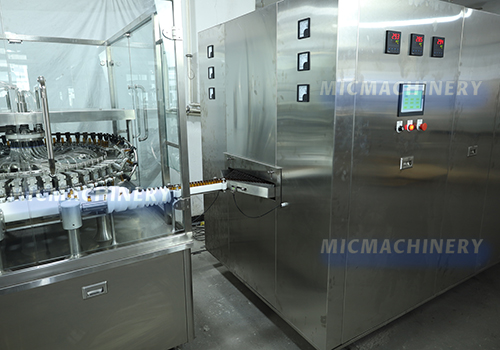

Washing machine   This machine is suitable for cleaning various types of glass bottles. It adopts a multi head disc structure and sends the bottles to the dividing jaws through a bottle dividing mechanism. After clamping the bottles, they are washed inside and outside multiple times with purified water, purified compressed air, purified water, and purified compressed air to complete the bottle cleaning. This machine has a simple structure, reliable operation, and meets GMP requirements, making it an ideal equipment for pharmaceutical companies and health product manufacturers.

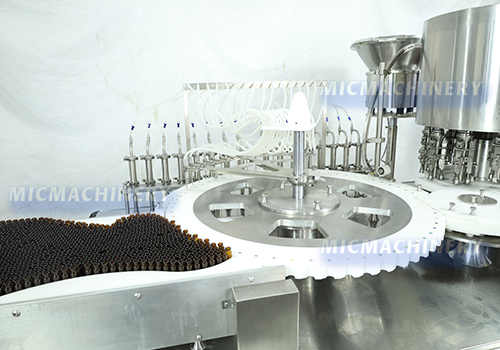

Filling machine   This machine is a filling host in the production line of oral liquid and other liquids, mainly used for filling, capping, and sealing 5 and 30ml oral liquid bottles. Using a small spacing wide mesh belt to transport bottles, the bottle delivery is reliable and efficient; 4-16 pump chuck is used for tracking filling, which is fast, stable and does not produce foam. Filling without dripping, electromagnetic oscillation cap feeding, high cap rate, using 1-12 head three blade or single blade flexible cap rolling, with correct positioning center, the rolled bottle is beautiful and tight, the aluminum cap is upright, without false lock, curled edge, or crooked cap phenomenon, achieving a smooth and flat locking position, no burrs, notches, wrinkles, and no rotation of the aluminum cap. It has the functions of no filling for missing bottles, no capping for missing bottles, and no cap alarm. The filling and sealing of this machine are integrated into one, with advanced design, compact structure, and compliance with GMP pharmaceutical requirements.

Complete Three-in-One Process: Washer, Dryer, Filler Integration

This line eliminates manual transfers and contamination risks by integrating three critical stages:

1. High-Speed Rotary Disc Bottle Washer: Utilizes purified water and compressed air jets to thoroughly clean and rinse glass or plastic bottles, ensuring particulate-free containers.

2. Efficient Drying Oven: A conveyorized, heated air tunnel rapidly removes residual moisture, preparing bottles in a sterile, dry state for filling.

3. 16-Heads Precision Oral Liquid Filler: The core of the oral liquid filling machine line features 16 servo-controlled peristaltic pumps for high-accuracy filling (±0.5%) of volumes from 10ml to 30ml, coupled with an automatic screw capping station.

This integrated design minimizes floor space, reduces labor costs, and creates a continuous, hygienic production flow—making it a highly efficient cheap oral liquid filling machine line in terms of total cost of ownership and operational simplicity.

Engineered for Performance, Built for Value

We specialize in delivering robust, pharmaceutical-grade performance at an accessible price point. This line is constructed with 304 stainless steel on all critical contact points and frames, featuring food-grade tubing and easy-clean surfaces. The centralized PLC control system allows for synchronized operation of all three modules from a single touchscreen interface, managing speeds, temperatures, and recipes. For distributors and large-scale operators, we offer attractive wholesale oral liquid filling machine line packages, providing significant value for equipping multiple facilities or for resale to regional partners.

Core Features & Operational Advantages

• Turnkey Automation: From dirty bottle inlet to filled, capped bottle outlet, the process is fully automated, ensuring consistency and reducing human intervention.

• High-Output Efficiency: The 16-head filler, paired with continuous washing and drying, enables sustainable outputs of 300-350 bottles per minute.

• Precision & Hygiene: Peristaltic filling technology prevents cross-contamination, while the closed drying oven protects clean bottles from environmental exposure.

• Cost-Effective Operation: The integrated design lowers energy consumption, reduces product loss (<0.3%), and minimizes maintenance needs compared to separate standalone machines.

• Scalable & Flexible: The line easily accommodates various bottle sizes (10-30ml) and liquid viscosities, from thin syrups to thicker suspensions, with quick changeover tooling.

A Strategic Investment for Growth

This production line is more than machinery; it's a strategic asset designed to scale with your business. It provides the perfect balance of capacity, compliance, and affordability, making it an ideal entry-level oral liquid filling machine line for new market entrants or a reliable wholesale oral liquid filling machine line investment for distributors. The robust engineering ensures years of reliable service, offering a rapid return on investment through reduced labor, minimal waste, and high product quality.

Applications

• Pharmaceuticals: Cough syrups, antipyretics, antibiotic suspensions, digestive tonics.

• Nutraceuticals: Herbal extracts, vitamin supplements, dietary liquid formulas.

• Traditional Medicines: Chinese herbal preparations, Ayurvedic liquids.

• Veterinary Products: Oral medications and supplements for animals.

Comprehensive Support & Wholesale Advantage

We stand behind our technology with full support. For qualifying wholesale oral liquid filling machine line orders, we provide enhanced benefits including extended warranty, priority spare parts access, and custom branding options. Our services include detailed installation guidance, operational training, and ongoing technical support to ensure your line achieves optimal performance from day one.
